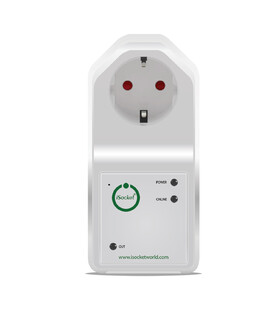

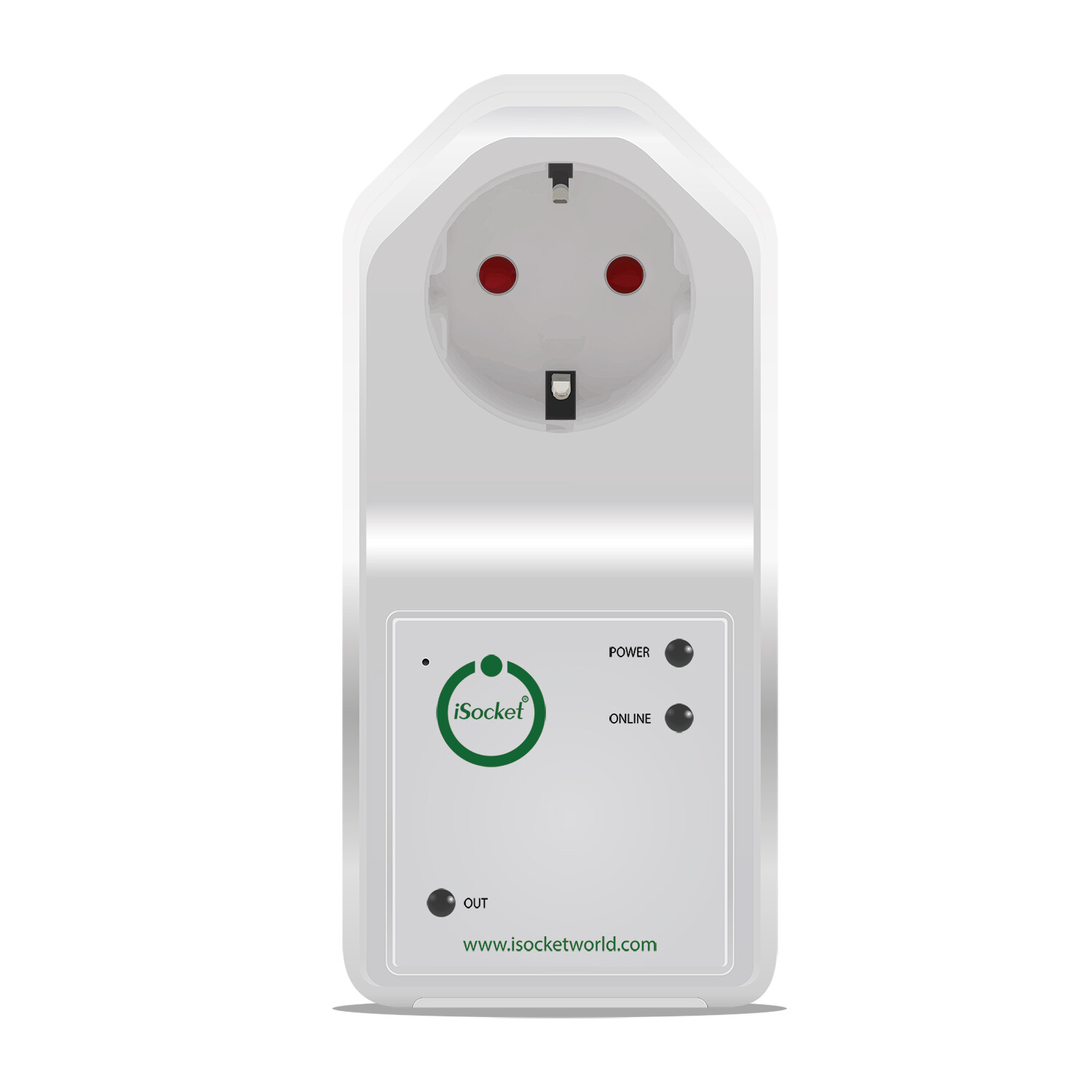

iSocket with energy meter
Plug-and-Go solution for equipment failure detection, energy consumption monitoring and power outage notifications with all other alarm monitorings.
iSocket® is a smart plug that notifies you about power outages, temperature changes, water leaks or other alarm events on remote sites directly to your phone via cellular networks. Since 2021 iSocket is a Plug-and-Go hassle-free solution with integrated connectivity that allows your iSocket to work out of the box. This new iSocket is capable to measure current flow from the wall socket into your appliance. This feature allows you to detect appliances failures or measure power consumption (energy metering). With optional sensors you can build a simple smoke alarm, motion detection alarm, gas leakage alarm or other alarm systems. You do NOT need Wi-Fi!
The new iSocket is also an ideal solution for temperature control of vaccine storage in medical refrigerators.
iSocket has been designed with rigid security in mind and yet Plug-and-Go. We put all our 10+ years experience into this new iSocket. We invented these technologies long time ago when the world did not know about them.
You manage your new iSocket from a convenient iSocket IoT Portal account that we create for you based on your order.
Технические данные
- iSocket Pro Energy Metering
- ISPROEMEU
- CEE 7/4, German "Schuko"
- Energy meter: remote control of power consumption of connected appliances
- Alerts about power outages / power restore: text, voice to your mobile phone or by email
- Precision temperature monitoring remotely: ambient, room, vaccine storages, freezers, fridges, fish tanks (aquariums)
- Remote power switch - remote on/off & reboot
- Different remote alarm monitorings via mobile network without Wi-Fi: water leak, fire, burglar, gas leak
- Remote control & alarm for sun powered homes
- iSocket® Power Notifier - a feature which will notify you in the event of a power outage or when the power is restored
- Li-ion or Li-po high quality batteries with excess capacity cater for signal delays in the event of a break in the mobile network before sending the power outage alert
- Charging from internal charger about 10 hours if totally discharged
(with notification to your mobile phone)
- Home alarm system
- Remote temperature control system
- Power loss notification system
- Remote on/off reboot system
- Gas leakage alarm
- Water leak alarm
- Burglar alarm
- Smoke or fire detection alarm
- Temperature fall/rise alerts system
- Motion detect alarm
- Door opening alarm
- Power failure alarm
- iSocket® Temperature Notifier - notifies you in the event of the room temperature falling below or rising above critical levels
- Thermometer: temperature measurement
- Thermostat: turn on/off equipment by thermostat's settings
- 110-240VAC, 50-60Hz
- Stand-by power ~1W, Green Power
- Remote turn on/off or restart of 120VAC/240VAC appliances
- Max. rating 4000W (16A at 250VAC); 2000W (16A at 120VAC); continuous resistive load
- Nominal rating 3600W; 1800W for 120VAC
- Mini-jack 3.5mm connector on the rear of the device
- Support logical 12VDC sensors: motion sensor, door opening detector, smoke detector, water sensor, etc.
- iSocket® Alarm Notifier – a feature which send alerts to your phone when external sensors was activated
- Support several numbers for alerts
- Mini-jack 2.5mm connector on the rear of the device
- Support sensors from the original manufacturer, which are water-proof, with measurement limits from -55C(-67F) to 120C(248F) and ±0.5°C accuracy from -10°C to +85°C
- Integrated true IoT connectivity
- iSocket® Online 24/7 - gets the device back online even after a break in the mobile network
- Integrated
- POWER green
- GSM blue
- OUT red
- Indoor use, dry conditions
- 0C – +30C (32F – 86F) *According to certifications (official range)
- -15C – +40C (5F – 104F) *According to experience
- -30C – +50C (-22F – 122F)
- Weight Net/Gross (approx.): 250g (0.55lb) /
- Product dimensions, LxWxH (approx.): 2.56x1.77x5.51 inches (65x45x140 mm)
- Product in the package dimensions, LxWxH (approx.): 7x4.52x3.15 inches (180x115x80 mm)
- CE mark
- 1 year (for some countries 2 or 3 years)
- Designed and manufactured in Finland
